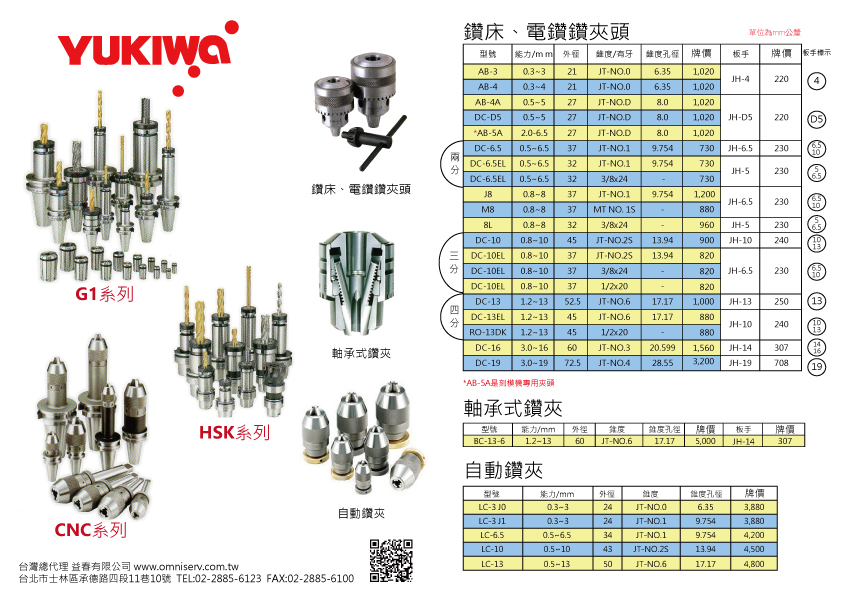

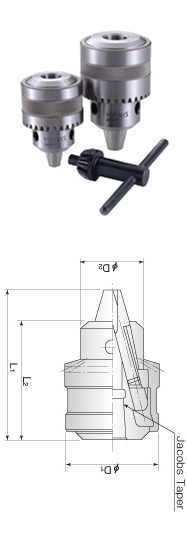

鑽床電鑽鑽夾、 钻夹头
型號 *刻模機專用
| 型號 | 能力 | 外徑 | 錐度/牙數 |
| AB-3 | 0.3~3mm | 21mm | JT-NO.0 |
| AB-4 | 0.3~4mm | 21mm | JT-NO.0 |
| AB-4A | 0.5~5mm | 27mm | JT-NO.D |
| DC-D5 | 0.5~5mm | 27mm | JT-NO.D |
| AB-5A* | 2-6.5mm | 27mm | JT-NO.D |
| DC-6.5 | 0.5~6.5mm | 37mm | JT-NO.1 |
| DC-6.5EL | 0.5~6.5mm | 32mm | JT-NO.1 |
| DC-6.5EL | 0.5~6.5mm | 32mm | 3/8x24 |
| DC-10 | 0.8~10mm | 45mm | JT-NO.2S |
| DC-10EL | 0.8~10mm | 37mm | JT-NO.2S |
| DC-10EL | 0.8~10mm | 37mm | 3/8x24 |
| DC-10EL | 0.8~10mm | 37mm | 1/2x20 |
| DC-13 | 1.2~13mm | 52.5mm | JT-NO.6 |
| DC-13EL | 1.2~13mm | 45mm | JT-NO.6 |
| RO13DK | 1.2~13mm | 45mm | 1/2x20 |
| DC-16 | 3.0~16mm | 60mm | JT-NO.3 |
| DC19 | 3.0~19mm | 72.5mm | JT-NO.4 |
自動鑽夾頭/自紧式钻夹头
| 型號 | 能力 | 外徑/mm | 錐度 |
| LC-3 | 0.3~3mm | 24 | JT-NO.0 |
| LC-3 | 0.3~3mm | 24 | JT-NO.1 |
| LC-6.5 | 0.5~6.5mm | 34 | JT-NO.1 |
| LC-10 | 0.5~10mm | 43 | JT-NO.2S |
| LC-13 | 0.5~13mm | 50 | JT-NO.6 |
軸承式鑽夾頭/轴承钻夹头
| 型號 | 能力 | 外徑/mm | 錐度 |
| BC-13-6 | 1.2~13mm | 60 | JT-NO.6 |
鑽夾頭板手/钻夹头扳手
| 型號 |
| AB-3/AB-4 |
| AB-4A/AB5A/DC-D5 |
| DC-6.5/DC-10EL/DC-10EL(3/8"x24T)/DC-10EL(1/2"x20T) |
| DC-6.5EL/DC-6.5EL(3/8"x24T) |
| DC-10/DC-13EL/RO13DK |
| DC-13 |
| DC-16 |
| DC-19 |
